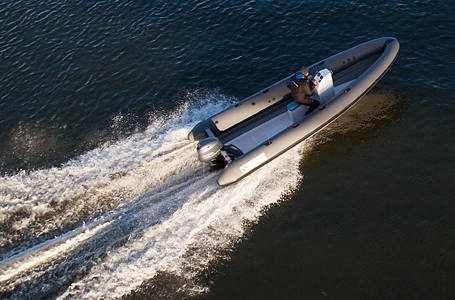

H-14 PERFORMANCE RIBS / MODEL AX 580

Our company specializes in building working ribs and leisure ribs with multiple options for interior design. All models are designed with large V shape at nose to improve their seaworthiness.

AX580 is a large boat with original bottom shape customized to deal with difficult sea conditions. The hull length still allows to operate freely even in rough seas, while maintaining high stability and security. Lightweight design and a wide redan provide quick planning.

Basic features:

  • big V in the bow,
  • very dry cockpit,
  • crew stays deep in the cockpit,
  • increased longitudinal and transverse stability,
  • a lot of space in the cockpit allows to install a double seat and the coach box.

AX580 is a real sea wolf; professional equipment adapted for usage simplicity.

Each H-14 RIB is made specifically to order! Decide on the number and configuration of seats and available colors of hull and tubes. We will finish it according to your order.


Certificate of motor boat AX580


TECHNICAL DATA

Hull length [cm]: 593
Hull width [cm]: 224
Tube diameter [mm]: 350 - 400
Tube material: hypalon
Number of chambers: 5
Max load [kg]: 590
Weight [kg]: 430
Max engine power [kW]: 51,4
Engine column: L
Max crew: 6


H-14 ribs meet all the requirements, standards and directives of recreational boats and are certified by Polish Ships Registry with - CE mark.
